PKCS11-TO-CMD - Externalize PKCS#11 operations to a CLI

The pkcs11-to-cmd is a PKCS#11 module which allows PKCS#11 operations to be performed via command line tools. This is useful for environments where other tools expect signing operations through PKCS#11 modules but your actual infrastructure does not have a corresponding PKCS#11 module but a CLI interface. The pkcs11-to-cmd acts as a bridge, translating PKCS#11 calls into shell commands that interact with a given command line application. In order to achive the goal pkcs11-to-cmd tries to retrieve missing information about the used key from provided x509 certificate.

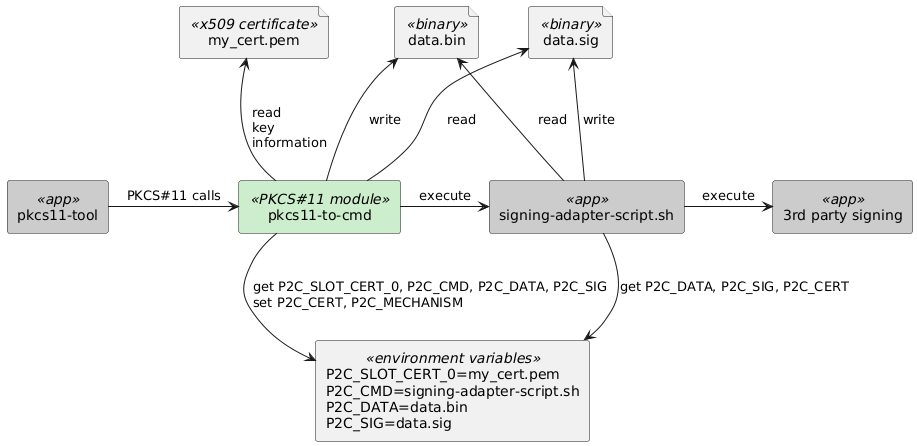

Context View

In the diagram above the pkcs11-tool (from the OpenSC package) is the actual tool, but stays there as a representee of any tool which is capable to interact with a PKCS#11 modules.

How to use

Parameters

The parameters used by pkcs11-to-cmd are passed as environment variables. The following parameters are supported:

P2C_CMD - The command to be executed for signing operations.
P2C_DATA - The path to the data to be signed. pkcs11-to-cmd will store passed data in this file.
P2C_SIG - The path to the signature file. pkcs11-to-cmd expects the generated signature in this file.
P2C_SLOT_CERT_<0-9> - The path to the x509 certificate file. This file is used to extract the public key and other information needed for signing.
P2C_CERT - The path to the x509 certificate file, selected by the pksc11-tool. The value is one from the P2C_SLOT_CERT_<0-9> variables. This variable is set by pkcs11-to-cmd and used by the signing command (P2C_CMD).
P2C_DEBUG - If set to 1, enables debugging output. This will print the API calls processed by pkcs11-to-cmd to stderr.
P2C_MECHANISM - The mechanism to be used for signing operations. The application calling PKCS#11 API will set mechanism and pkcs11-to-cmd will pass it to the signing command as an environment variable. Its value is one of the PKCS#11 mechanism names, e.g. CKM_RSA_PKCS, CKM_ECDSA, etc.

Listing available tokens

Following example shows how to list available tokens in pkcs11-to-cmd. The command helps you to debug the settings, when you use pkcs11-to-cmd first time. In this example the two slots are configured by the environment variables P2C_SLOT_CERT_0 and P2C_SLOT_CERT_2. The P2C_SLOT_CERT_1 is not configured and therefore empty in the output. The pkcs11-tool is used to list the available slots. The token label and serial num are derived from the number of the slot. You can use them to address initialized slots (see Resigning with RAUC) in PKCS#11 tools.

export P2C_SLOT_CERT_0="tests/data/my_rsa_0.pem"
export P2C_SLOT_CERT_2="tests/data/my_ec_0.pem"
pkcs11-tool --module "build/libpkcs11-to-cmd.so" -L
Available slots:
Slot 0 (0x0): tests/data/my_rsa_0.pem
  token label        : pkcs11-to-cmd-0
  token manufacturer : pkcs11-to-cmd
  token model        : sw
  token flags        : token initialized
  hardware version   : 1.0
  firmware version   : 1.0
  serial num         : sn-0
  pin min/max        : 0/0
Slot 1 (0x1):
  (empty)
Slot 2 (0x2): tests/data/my_ec_0.pem
  token label        : pkcs11-to-cmd-2
  token manufacturer : pkcs11-to-cmd
  token model        : sw
  token flags        : token initialized
  hardware version   : 1.0
  firmware version   : 1.0
  serial num         : sn-2
  pin min/max        : 0/0

Resigning with RAUC

RAUC is an Over The Air update technology, client and build tool. It is used to create and manage software update bundles for embedded Linux systems. The pkcs11-to-cmd can be used to resign existing RAUC update bundles with a 3rd party signing tool, which is not a PKCS#11 module but a command line application. This allows to transform a development version of a RAUC bundle into a production version.

export P2C_CMD=tests/data/sign-cmd-rsautl.sh
export P2C_DATA=/tmp/data.bin
export P2C_SIG=/tmp/data.sig
export RAUC_PKCS11_PIN=1234
export P2C_SLOT_CERT_0=tests/data/my_rsa_0.pem
export RAUC_PKCS11_MODULE=build/libpkcs11-to-cmd.so
rauc resign --no-verify --key "pkcs11:serial=sn-0" --cert "pkcs11:serial=sn-0" --signing-keyring tests/data/my_rsa_0.pem my-fw-bundle.raucb my-fw-bundle-resigned.raucb

How to contribute

You are welcome to contribute, just reach out to the CODEOWNERS.

Developing

It is not a prerequisite but you would benefit from usage of the DevContainer. Open this repository in VSCode and then reopen in DevContainer as soon VSCode suggests it. The DevContainer contains all prerequisites already preinstalled, so that you can just start.

In VSCode you will find a Launch Configuration for several use cases, so that you can easily start debugging to get first experience with the code directly in the IDE after the compilation.

cmake -S . -B build -DCMAKE_BUILD_TYPE=Debug
cmake --build build -j $(nproc)

Testing

In tests directory you will find a set of tests that can be used to verify the functionality of pkcs11-to-cmd, but also to find an example for your particular signing problem to solve.

The tests/cmds directory contains

scripts starting with sign-cmd- faking operations of a 3rd party signing tool by using openssl cli commands.

Troubleshooting

Because we want to use pkcs11-to-cmd in different environments where different tools are providing data to sign, it is important to understand which kind of data is being passed and how the signing result should look like.

Understanding the data flow and extending the functionality

You can enable debugging output by setting the P2C_DEBUG environment variable to 1 before calling the tool which uses pkcs11-to-cmd. pkcs11-to-cmd will print the API calls processed to stderr. This output will help you to understand how the data is being passed and what the use case the calling tool tries to achieve.

The biggest challenge is to understand how the calling tool tries to find PKCS#11 objects and read their attributes. Some tools expect that the objects are found by their label, others by their ID, and some tools try to address objects after matching their attribute values like public key.

Note: The debugging output is always on when pkcs11-to-cmd is built for debugging.

Understanding the data format

The data to be signed is passed from pkcs11-to-cmd to the signing script via the P2C_DATA environment variable. In order to process the data correctly and create a signature in valid format you need to understand the format of the data passed in and the signature your 3rd party signing tool creates.

dumpasn1 $P2C_DATA

Prints the ASN.1 structure of the data to be signed, which is useful to understand how the data is structured and what fields are present. You could have misleading information that data to be signed is in raw format but the signing tools fails to sign it. Knowing whether the data is already in ASN.1 format helps you to parameterize 3rd party signing tool correctly.

hexdump $P2C_DATA

Prints the raw bytes of the data in hex format. You can try to use its output to identify some markers of the data format, e.g. if it is a DER-encoded structure.
